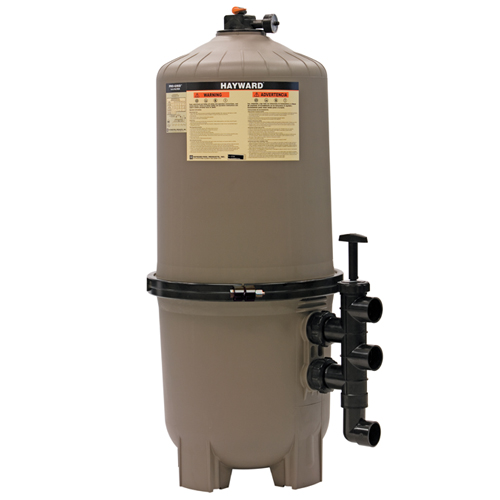

Hayward Pro-Grid DE 48 SQFT Filter
Hayward Pro-Grid DE 48 SQFT Filter
Hayward Pro-Grid DE 48 SQFT Filter
Hayward Pro-Grid DE 48 SQFT Filter
Hayward Pro-Grid DE 48 SQFT Filter
Hayward Pro-Grid DE 48 SQFT Filter
Hayward Pro-Grid DE 48 SQFT Filter
Hayward Pro-Grid DE 48 SQFT Filter
Hayward Pro-Grid DE 48 SQFT Filter
Hayward Pro-Grid DE 48 SQFT Filter
Hayward Pro-Grid DE 48 SQFT Filter
Hayward Pro-Grid DE 48 SQFT Filter

Hayward Pro-Grid DE 48 SQFT Filter

Manufacturer: Hayward
Item #: W3DE4820
Availability: Available
Regular price: $2,312.99
Sale price: $1,321.99
Qty:

Pro-Grid™
Vertical Grid D.E. Filters


Pro-Grid vertical grid D.E. filters provide superior water clarity, efficient flow and large cleaning capacity for pools and spas of all types and sizes. Pro-Grid combines high-technology features and "service-ease" design for an unparalleled filtration value for both new pool and aftermarket installations.

Features


  • High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever.
  • Filter tanks made from durable glass reinforced copolymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems.
  • Self-aligned tank top and bottom make access to servicing the grid elements fast and simple
  • Heavy-duty, tamper proof, one piece flange clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections.
  • High impact grid elements designed for up-flow filtration and top-down backwashing for maximum efficiency.
  • Integral lift handles and uniform low-profile base make removal of grid nest fast and simple.
  • Inlet diffuser elbow distributes flow of unfiltered water evenly to all filter elements and provides even distribution of D.E. to grids.
  • Convenient valve and plumbing options allow for customized control.
  • 2" full-flow internal piping and plumbing for less resistance to flow and maximum performance.
  • 72 ft.² filter allows for both commercial and large residential applications and years of non-corrosive, trouble-free performance.

Applications


  • In-ground pools
  • In-ground spas or in-ground pool/spa combinations

Product Specifications:

Pro-Grid D.E. Filter
Model No. Effective Filtration Area

D.E. Required

Dimensions Carton Weight
Width* Height
DE2420 24 ft.² 3 lbs. 24 " 32 ½" 56 lbs.
DE3620 36 ft.² 4 ½" lbs. 24" 34 ½" 65 lbs.
DE4820 48 ft.² 6 lbs. 24" 40 ½" 74 lbs.
DE6020 60 ft.² 7 ½ lbs. 24 " 46 ½" 84 lbs.
DE7220 72 ft.² 9 lbs. 24 " 52 ½" 94 lbs.

NOTE: Above dimensions are for filters only. Add 12" for 1 ½" and 14" for 2" multiport valves.Add 7" for 2" slide valve.
